Description

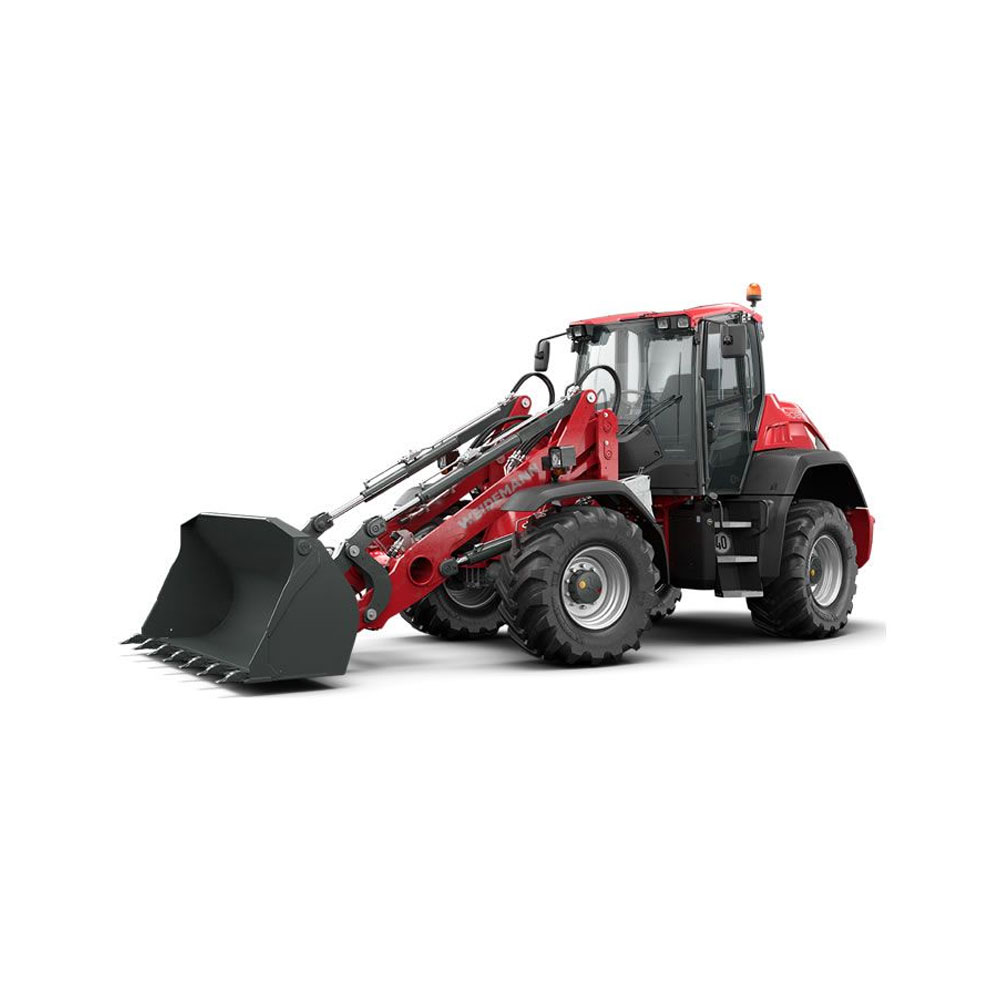

The wheel loader 9080 was designed to handle particularly heavy materials – as found, for example, permanently working in large plants and biogas facilities, in silos or with a large number of big bales. Machines of this size also prove their worth in the recycling sector, industrial operations, and in municipal use. They can work efficiently and sustainably in conjunction with the latest engine technology (level IV and level V-certified). Climb aboard!
Engine
Turbo diesel engine Deutz TCD 3.6 L4 (100 kW / 136 hp) / DOC/SCR/EU: Level IV | US: EPA Tier 4
Drive system
Planetary axle PA1900
Hydrostatic 4 wheel drive system through transfer gear and universal joint shaft, travel direction can be selected via joystick
100% differential lock front and rear axle
Speed 20 km/h
3 speeds (7 km/h / 15 km/h / 20 km/h)
Service brake: Multi-disc brake in the front axle acts on rear axle through universal joint shaft
Parking brake: Electro-hydraulic, multi-disc spring-loaded brake in the front axle, acts on rear axle through universal joint shaft
500 / 70 R24 Michelin XMCL ET 40
Steering system
Hydraulic articulated steering with rear oscillating axle
Hydraulics
Electric, pilot operated joystick with direction control switch and integrated touch button for differential lock
3rd control circuit in front electrically pilot-operated and proportional via joystick
Oil volume adjustment via jog dial
Pressure release of the hydraulic connections on the load arm
Load sensing 150 l/min
Operator’s cab
2-door comfort cabin, Roll Over Protection System/FOPS level 2
Automatic air-conditioning system
Sliding window in both doors; roof window with wiper
Radio
7” colour display with all important machine information
Comfort seat with safety belt, fully suspended, weight, back and horizontal adjustment
Other
Tool box
Set of tools
Reverse fan
