Description

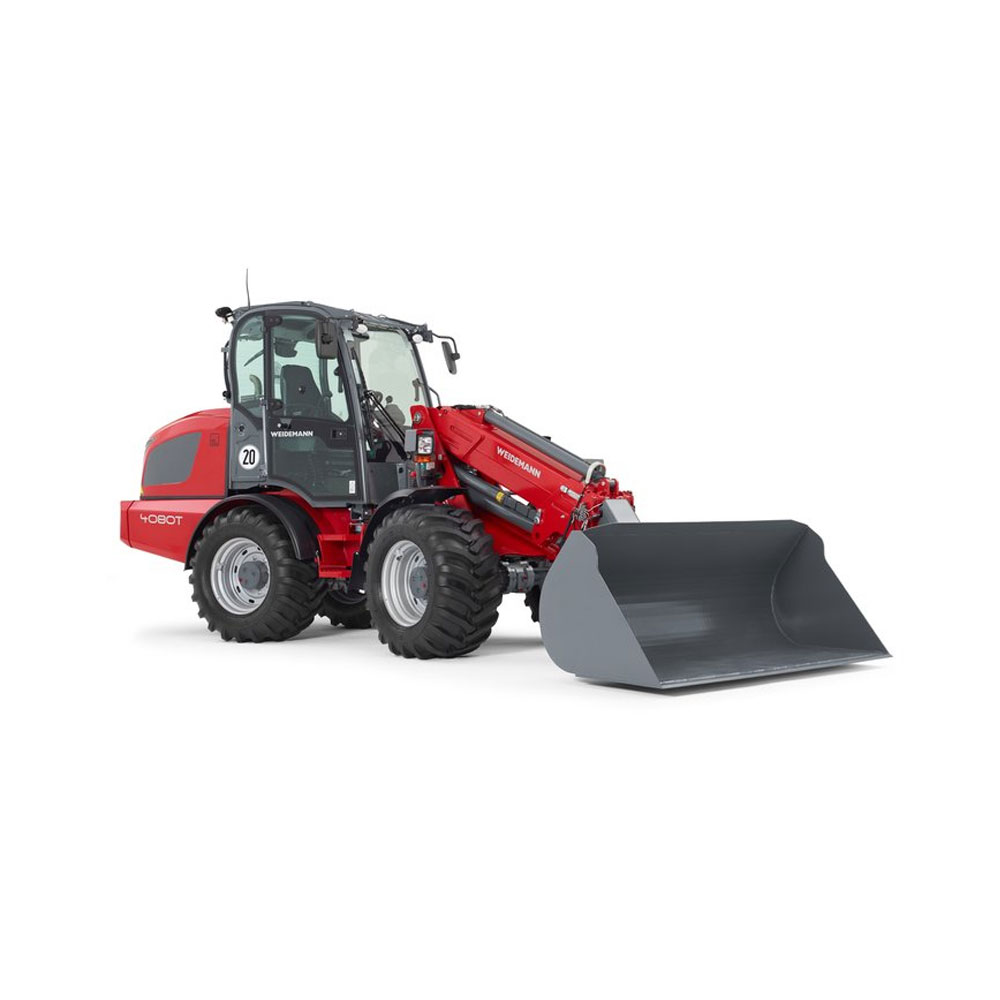

The tele wheel loader 4080T is designed for medium-size and larger agricultural companies. This size class makes its rounds successfully in industrial and commercial businesses as well. The comfort cab of the tele wheel loader 4080T offers plenty of legroom, clearly arranged instrument clusters, a comfortable driver’s seat and an optimum view of the attachment. A workplace that completely supports and motivates the operator. This way, comfortable and concentrated work can be done with the loader, even for longer times. The optional High Flow Load Sensing performance hydraulic system, with 150 l/min flow, is the strongest in the 6-ton class. It enables the work functions of the telescopic arm to be operated faster and simultaneously.
Engine
- Perkins 854F-E34TA (55.4 kW / 75 hp)
Drive system
- PA1422 planetary axle
Hydrostatic 4 wheel drive, travel direction can be selected via joystick
Service brake: Disc brake (combined with parking brake)
Central service and parking brake in the drive train acting on all 4 wheels
100% differential lock, electric-hydraulically connectable on front and rear axle
Tyres 12.5–20 MPT ET0
Steering system
- Hydraulic articulated pendulum steering, 12° oscillating angle
Hydraulics
- 3rd control circuit in front electrically proportional in parallel via joystick, including double notch
Hydraulic oil cooler
Depressurised front reverse travel
Floating position for lift cylinder
Oil volume adjustment via jog dial control element
Operator’s cab
- Comfort cabin with heater and ventilation, ROPS / FOPS tested
- Laterally tiltable operator’s cab
- Comfort seat with safety belt, fully suspended, weight, back and horizontal adjustment
- Hydraulically controlled joystick with motion direction control and integrated touch button for differential lock
- Adjustable steering wheel (tilt), armrest on right
Kinematics
- Telescopic arm
Other
- Work lights (2 front, 2 rear)
- Lighting equipment according to Road Traffic Regulations
- Operating hour meter
- Battery isolator switch
- Fuel display
- Hydraulic quickhitch system for attachments
- Plug receptacle in front, triple-pole, dual function
- Lowering brake valve (hose burst valves for lift and tipping cylinders)
- Lighting display according to Road Traffic Regulations
- Triple-pole plug receptacle in front for dual function
