Description

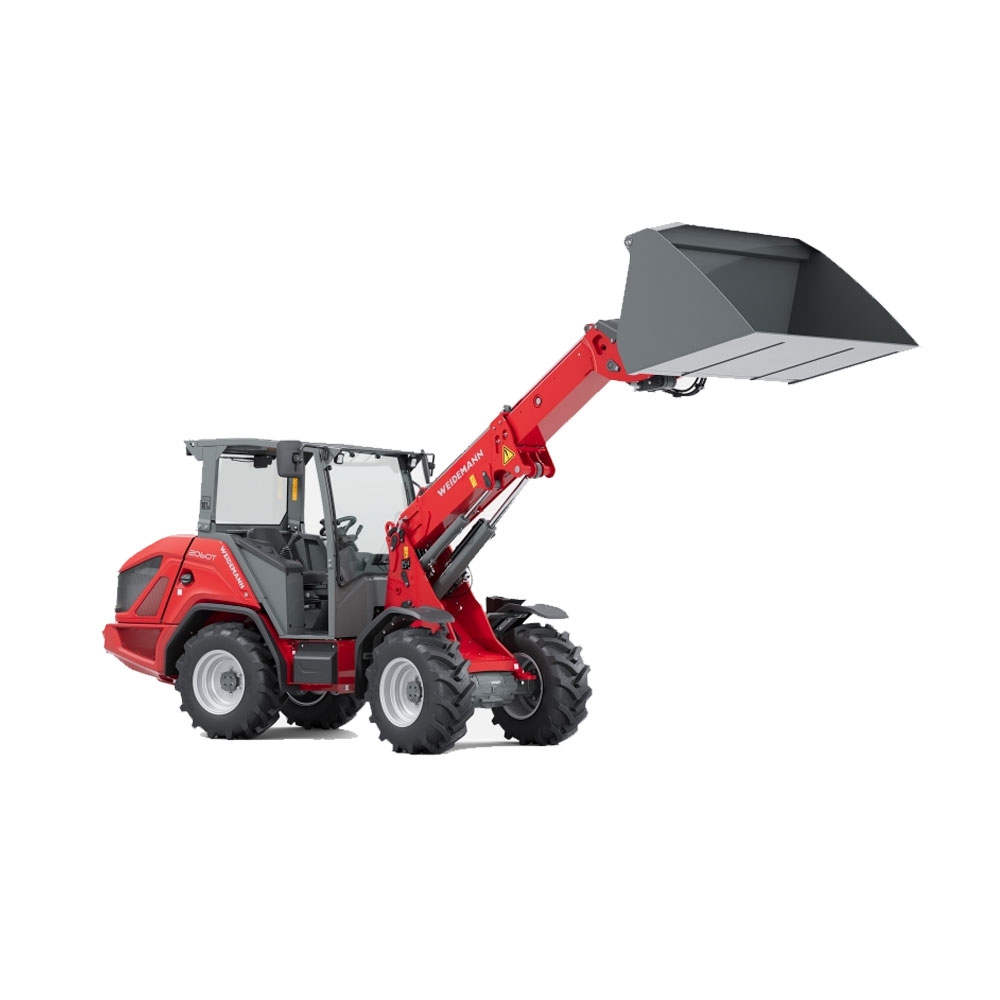

A telescopic wheel loader is particularly ideal for those who need more lift height. For in addition to functionality, a high level of working comfort and excellent safety standards, these machines have a telescopic boom that provides considerably higher lift height and range compared to normal wheel loaders with loading arms. The basic virtues, such as manoeuvrability, stability and lifting force that characterise the articulated wheel loader, also apply to a telescopic wheel loader – which makes them so successful.
Steering system
- Hydraulically activated articulated pendulum steering
- Steering cylinder: 1
Operator’s cab
- Operator’s canopy ROPS / FOPS tested, rear windshield
- Generous provision of space
- Mirror on the left and right
- Ergonomic, generous access
- Adjustable steering wheel (incline and height)
Lighting
- Lighting according to StVZO
- LED Basic worklights (1000 lm) on the roof, 2 at the front, 1 at the rear
Drive system & Axles
- Axle: Planetary axle PA1200
- Drive: hydrostatic via transfer case and cardan shaft, electronically controlled
- Driving modes: Auto mode; ECO mode (reduction in engine speed when the set speed is reached)
- Lock: 100%, front and rear axle
- Speed: 20 km/h (optional 30 km/h)
- Speed levels: 2 | 10 km/h / 20 km/h
- Service brake: Drum brake on the front axle acting on the rear axle via cardan shaft
- Parking brake: Drum brake – actuated by handbrake lever on the front axle, acting on the rear axle via cardan shaft
Tires
- 365 / 70 R 18 BKT MP513 ET20, width 1520 mm, height 2425 mm
Loading system
- Telescopic load arm LS1000
- Quickhitch facility (Weidemann HV/HT – C) hydraulic
- Kinematics: Z
- Lifting cylinder: 1
- Tipping cylinder: 1
- Floating position for lift cylinder
Hydraulics
- Electric pilot-controlled joystick with travel direction control and integrated touch button for differential lock and proportional telescopic function
- 3rd control circuit front, electrical, proportional via joystick incl permanent operation
- Work hydraulics 59 l/min (22.9 ccm)
- Hydraulic oil cooler
