Description

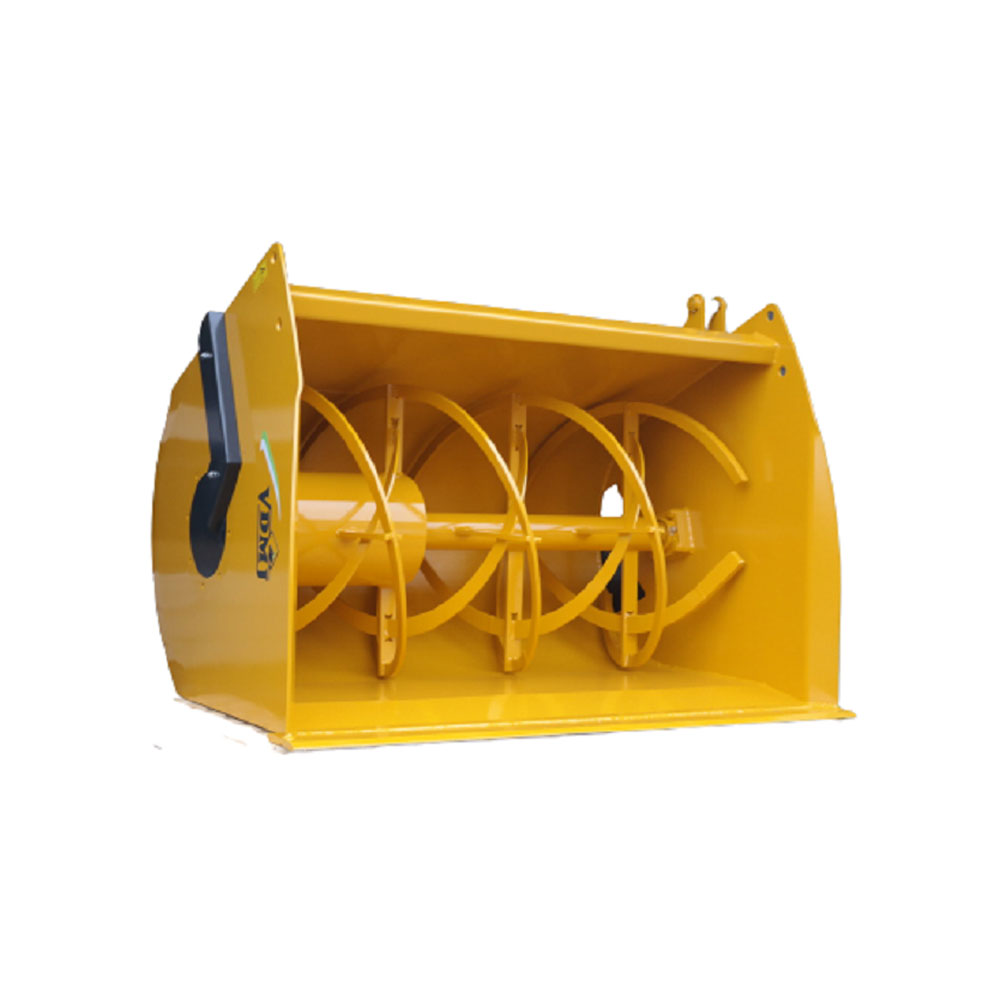

The CCM mixing and distribution bucket is used to mix and distribute CCM, concentrated feed, etc.
The mixing system of the bucket consists of a 800 mm diameter ribbon mixer with a counterflow ribbon. The drive of the mixer is provided by a heavy-duty planetary gearbox.
The operation of a standard bucket without options is done by plugging in 2 hydraulic quick couplings and a 12V plug. If the bucket is equipped with options, the operation will be done by means of a joystick box.
Standard
- Used for mixing and distribution of CCM, concentrates, …
- Sheet thicknesses 5 and 8mm
- Driven by planetary gearbox and hydraulic motor
- Auger Ø 800 mm, with counterflow ribbon
- Exit left or right via hydraulic door
- 2nd side unloading is an option
- Widened shovel section especially for shovelling into a trench silo
- Electro-hydraulic control (supplies: 1 double-acting valve + 12V connection)
